Optimus

Optimus is the result of extensive research into diffusion techniques which is based on a traditional QRD diffusion sequence. Combined with variable well depth and width overcoming some of the limitations of a standard QRD.

The unique surface of the diffuser is designed to provide a uniform sound filed throughout the mid and high frequency diffusion. The well depths are individually tuned to enhance performance at certain frequencies, essentially increasing the effective range of the panel, without compromising the overall linear response.

The Optimus diffusers can be easily installed on walls with the integrated clip in system or the cleat system.

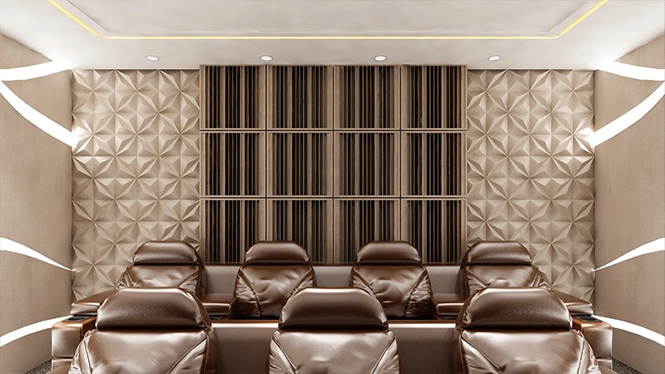

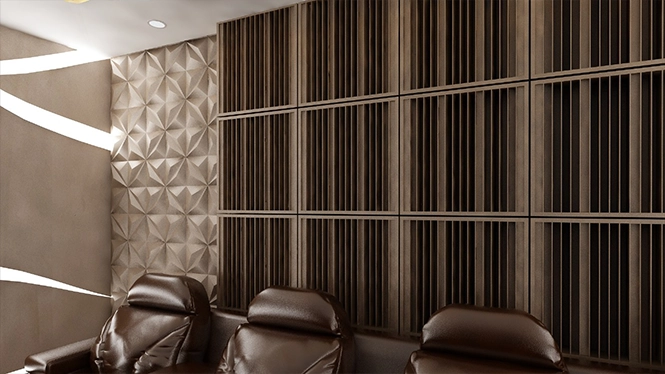

Optimus diffusers are perfect for Recording Studios, Home Theaters, Listening Rooms, Hi-Fi etc. Available in elegant wood finish, solid color finishes and a variety of metallic finishes.

Features

Perfect Diffusion Control
Diffusion Range: 800Hz to 7000Hz.
Acoustic Class = NRC 0.6 (125-500 Hz)

Version: 595x595x154mm
Installation : Clip | Cleat
Finishes: Wood | Solid Colors | Metallic Finishes

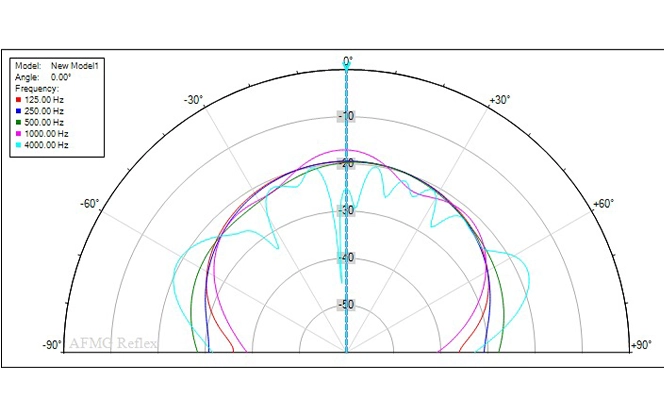

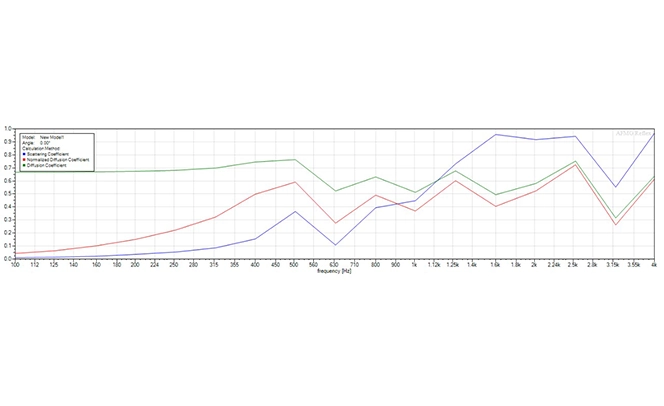

Performance

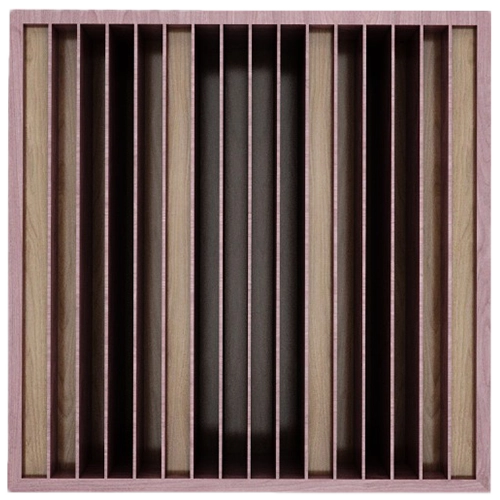

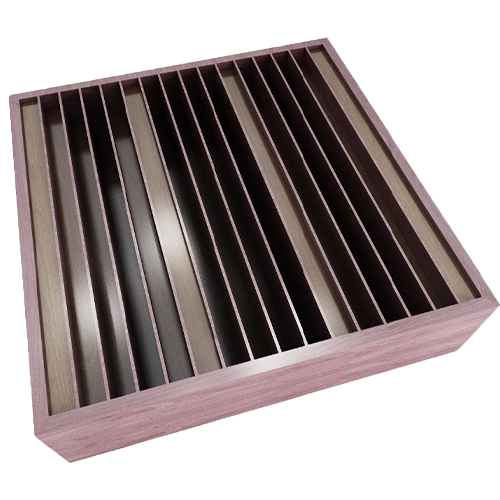

Product Images

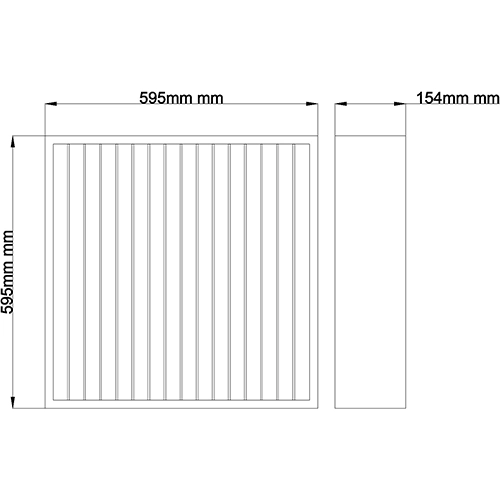

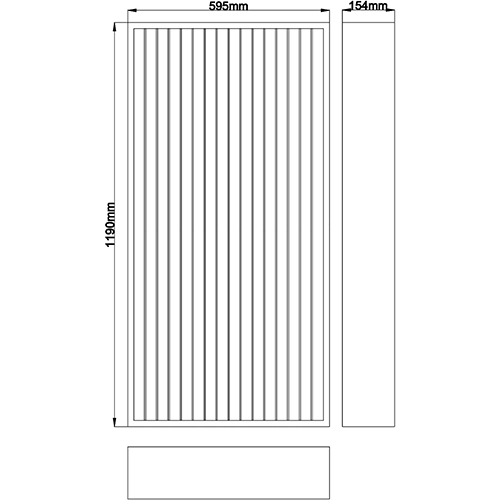

Sketch

Features

Perfect Diffusion Control
Diffusion Range: 800Hz to 7000Hz
Acoustic Class = NRC 0.6 (125-500 Hz)

Finishes: Wood | Solid Colors | Metallic Finishes
Version: 595x595x154mm
Installation : Clip | Cleat

Finishes: Wood | Solid Colors | Metallic Finishes
Version: 595x595x154mm
Installation : Clip | Cleat

A Timeless design

The Optimus diffusers can be easily installed on walls with the integrated clip in system or the cleat system.

Fixing Systems

Cleat

Easy to install based on a French cleat system for all types of applications. With easy adjustment once mounted, and an easy push-in, pull-out system. Clip
Easy to install based on a French cleat system for all types of applications. With easy adjustment once mounted, and an easy push-in, pull-out.

Project Support

This form is a tool designed to assist professionals plan and configure acoustic treatment projects.https://www.youtube.com/watch?v=XHOmBV4js_E

Overview of Product

Features
Downloads
Available Finishes
Features

Perfect Diffusion Control
Diffusion Range: 800Hz to 7000Hz
Acoustic Class = NRC 0.6 (125-500 Hz)
Version: 595x595x154mm
Installation Systems: Cleat | Clip
Finishes:Wood (Natural, Matte, Glossy) | Solid Colors (Matte, Glossy) | Metallic Finishes (Matte, Glossy)
